Schema romeConfig.xsd


element Configuration

diagram
annotation	documentation Configuration of a ROME Framework.

element Configuration/ProgramConfiguration

diagram
annotation	documentation Describes the program configuration. (required)

element Configuration/MainConfiguration

diagram
annotation	documentation Describes the main framework configuration. (required)

element Configuration/RunConfiguration

diagram
annotation	documentation Describes a run configuration, which overrides the main configuration for the specified runs. (optional)

complexType AnalyzerControllerDesc

diagram
used by	element  ArgusDesc/AnalyzerController
annotation	documentation Description of the Analyzer Contoller Settings.

element AnalyzerControllerDesc/Active

diagram
annotation	documentation Activate flag.

element AnalyzerControllerDesc/NetFolderName

diagram
annotation	documentation Name of the NetFolder to steer the analysis.

complexType ArgusDesc

diagram
used by	element  ConfigurationDesc/Argus
annotation	documentation Describes the argus specific properties.

element ArgusDesc/WindowScale

diagram
annotation	documentation Basic size of main window.

element ArgusDesc/StatusBar

diagram
annotation	documentation Display a status bar in the window.

element ArgusDesc/UpdateFrequency

diagram
annotation	documentation Time intervall after which the EventHandler method is called in milli seconds. 0 means no update. Default is 0.

element ArgusDesc/AnalyzerController

diagram
annotation	documentation Description of the Analyzer Contoller Settings.

element ArgusDesc/SocketToROME

diagram
annotation	documentation Description of the socket interface to the ROME analyzer. This section is needed if the ARGUS display should connect to a ROME analyzer of the current project.

complexType ARGUSDesc

diagram
used by	element  ProgramConfigurationDesc/ARGUS
annotation	documentation Description of the ARGUSsettings.

element ARGUSDesc/Active

diagram
annotation	documentation If true, the progam will be a monitor. Default is true.

complexType BankDesc

diagram
used by	element  EventDesc/Bank
annotation	documentation Description of a midas bank.

element BankDesc/BankName

diagram
annotation	documentation The name of the bank. (required)

element BankDesc/Active

diagram
annotation	documentation If true, this bank will be analyzed. Default is false.

complexType BranchDesc

diagram
used by	element  TreeDesc/Branch
annotation	documentation Description of a branch.

element BranchDesc/BranchName

diagram
annotation	documentation The name of the branch. (required)

element BranchDesc/Active

diagram
annotation	documentation Inactive branches are not filled by the framework. (optional)

complexType ConfigurationDesc

diagram
used by	elements  Configuration/MainConfiguration Configuration/RunConfiguration
annotation	documentation Description of the configuration.

element ConfigurationDesc/RunParameters

diagram
annotation	documentation Describes the run parameters. (optional)

element ConfigurationDesc/Modes

diagram
annotation	documentation Describes the modes in which the framework can run. (optional)

element ConfigurationDesc/Argus

diagram
annotation	documentation Describes the argus specific properties.

element ConfigurationDesc/DataBases

diagram
annotation	documentation Definition of the data bases, which the analysis accesses. (optional)

element ConfigurationDesc/Online

diagram
annotation	documentation Describes the online specific configuration. (optional)

element ConfigurationDesc/SocketInterface

diagram
annotation	documentation Describes the socket interface. (optional)

element ConfigurationDesc/Paths

diagram
annotation	documentation Describes the file paths the framework is using. (required)

element ConfigurationDesc/HistogramRead

diagram
annotation	documentation Describes the histogram/graph reading. (optional)

element ConfigurationDesc/Folders

diagram
annotation	documentation Describes the folders in the framework.

element ConfigurationDesc/Folders/Folder

diagram
annotation	documentation Describes the folder configuration. (optional)

element ConfigurationDesc/NetFolders

diagram
annotation	documentation Describes the NetFolders in the framework.

element ConfigurationDesc/NetFolders/NetFolder

diagram
annotation	documentation Describes the NetFolder configuration. (optional)

element ConfigurationDesc/Macros

diagram
annotation	documentation Describes the macross in which the framework can run. (optional)

element ConfigurationDesc/Tasks

diagram
annotation	documentation Describes the tasks in the framework.

element ConfigurationDesc/Tasks/Task

diagram
annotation	documentation Describes the task configuration. (optional)

element ConfigurationDesc/Tabs

diagram
annotation	documentation Describes the tabs.

element ConfigurationDesc/Tabs/Tab

diagram
annotation	documentation Describes the tab configuration.

element ConfigurationDesc/Trees

diagram
annotation	documentation Describes the trees in the framework.

element ConfigurationDesc/Trees/Accumulate

diagram
annotation	documentation Trees can be accumulated over certain runs. Default is false.

element ConfigurationDesc/Trees/Tree

diagram
annotation	documentation Describes the tree configuration. (optional)

element ConfigurationDesc/GlobalSteeringParameters

diagram
annotation	documentation Describes the global steering parameters configuration.

element ConfigurationDesc/GlobalSteeringParameters/SteeringParameterField

diagram
annotation	documentation Describes a steering parameter field. (optional)

element ConfigurationDesc/GlobalSteeringParameters/SteeringParameterGroup

diagram
annotation	documentation Describes a steering parameter group. (optional)

element ConfigurationDesc/Midas

diagram
annotation	documentation Describes the midas dependent part of the framework.

element ConfigurationDesc/Midas/MidasByteSwap

diagram
annotation	documentation When it is true, framework does byte swapping when reading MIDAS files. Default is false.

element ConfigurationDesc/Midas/Event

diagram
annotation	documentation Describes a midas event. (optional)

complexType DataBaseDesc

diagram
used by	element  DataBasesDesc/DataBase
annotation	documentation Describes a data base, to which the framework should be connected.

element DataBaseDesc/Name

diagram
annotation	documentation The name of the data base connection. (required)

element DataBaseDesc/Connection

diagram
annotation	documentation The connection string to initialize the database. For xml: "path;databasename". For sql: "mysql://username:password@servername:portnumber/databasename". For text: "your/database/directory". (required)

element DataBaseDesc/Type

diagram
annotation	documentation The type of the data base. (required)

element DataBaseDesc/EventBased

diagram
annotation	documentation If this is true the database gets read at each event. The '#' in the path means then event number. Default is false. (optional)

complexType DataBasesDesc

diagram
used by	element  ConfigurationDesc/DataBases
annotation	documentation Defines the data bases, which the analysis accesses.

element DataBasesDesc/DataBase

diagram
annotation	documentation Description of a data base, to which the framework should be connected. (optional)

complexType DisplayObjectDesc

diagram
used by	element  TabDesc/DisplayObject
annotation	documentation Description of a display object.

element DisplayObjectDesc/DisplayObjectName

diagram
annotation	documentation The name of the display object. (required)

element DisplayObjectDesc/DrawOption

diagram
annotation	documentation The root draw option. (optional)

complexType EventDesc

diagram
used by	element  ConfigurationDesc/Midas/Event
annotation	documentation Description of a midas event.

element EventDesc/EventName

diagram
annotation	documentation The name of the event. (required)

element EventDesc/Active

diagram
annotation	documentation If true, this event type will be analyzed. Default is false.

element EventDesc/Bank

diagram
annotation	documentation Describes a midas bank. (optional)

complexType FieldDesc

diagram
used by	element  FolderDesc/Field
annotation	documentation Description of a field of a folder.

element FieldDesc/FieldName

diagram
annotation	documentation The name of the field. (required)

element FieldDesc/DataBaseName

diagram
annotation	documentation The name of the database from which to read the field value. This value overwrites the value specified in the definition file. (optional)

element FieldDesc/DataBasePath

diagram
annotation	documentation The path to the value in the database. This value overwrites the value specified in the definition file. (optional)

complexType FolderDesc

diagram
used by	element  ConfigurationDesc/Folders/Folder
annotation	documentation Description of the folder configuration.

element FolderDesc/FolderName

diagram
annotation	documentation The name of the folder. (required)

element FolderDesc/Field

diagram
annotation	documentation Describes a field of a folder. (optional)

complexType GraphDesc

diagram
used by	element  TaskDesc/Graph
annotation	documentation Description of the graph configuration.

element GraphDesc/GraphName

diagram
annotation	documentation The name of the graph. (required)

element GraphDesc/GraphTitle

diagram
annotation	documentation The title of the graph. Displayed in the ROOT browser. This value overwrites the value specified in the definition file. (optional)

element GraphDesc/GraphFolderTitle

diagram
annotation	documentation The title of the ROOT folder in which the graph is stored. This value overwrites the value specified in the definition file. (optional)

element GraphDesc/GraphArraySize

diagram
annotation	documentation The array size of the graph. This value will be ignord if the graph is not declared as an array in the ROME definition file. The histograms are named HistName_001 and so on. With HistArrayStartIndex you can specifie with which number the enumeration starts. This value overwrites the value specified in the definition file. Default is 1.

element GraphDesc/GraphArrayStartIndex

diagram
annotation	documentation Start index of graph array name enumeration. This value overwrites the value specified in the definition file. Default is 0.

element GraphDesc/GraphXLabel

diagram
annotation	documentation The label text of the x axis. Text has to be placed in quotes. This value overwrites the value specified in the definition file. (optional)

element GraphDesc/GraphYLabel

diagram
annotation	documentation The label text of the y axis. Text has to be placed in quotes. This value overwrites the value specified in the definition file. (optional)

element GraphDesc/GraphZLabel

diagram
annotation	documentation The label text of the z axis. Text has to be placed in quotes. This value overwrites the value specified in the definition file. (optional)

complexType HistogramDesc

diagram
used by	element  TaskDesc/Histogram
annotation	documentation Description of the histogram configuration.

element HistogramDesc/HistName

diagram
annotation	documentation The name of the histogram. (required)

element HistogramDesc/HistTitle

diagram
annotation	documentation The title of the histogram. Displayed in the ROOT browser. This value overwrites the value specified in the definition file. (optional)

element HistogramDesc/HistFolderTitle

diagram
annotation	documentation The title of the ROOT folder in which the histogram is stored. This value overwrites the value specified in the definition file. (optional)

element HistogramDesc/HistArraySize

diagram
annotation	documentation The array size of the histogram. This value will be ignord if the histogram is not declared as an array in the ROME definition file. The histograms are named HistName_001 and so on. With HistArrayStartIndex you can specifie with which number the enumeration starts. This value overwrites the value specified in the definition file. Default is 1.

element HistogramDesc/HistArrayStartIndex

diagram
annotation	documentation Start index of histogram array name enumeration. This value overwrites the value specified in the definition file. Default is 0.

element HistogramDesc/HistXLabel

diagram
annotation	documentation The label text of the x axis. Text has to be placed in quotes. This value overwrites the value specified in the definition file. (optional)

element HistogramDesc/HistYLabel

diagram
annotation	documentation The label text of the y axis. Text has to be placed in quotes. This value overwrites the value specified in the definition file. (optional)

element HistogramDesc/HistZLabel

diagram
annotation	documentation The label text of the z axis. Text has to be placed in quotes. This value overwrites the value specified in the definition file. (optional)

element HistogramDesc/HistXNbins

diagram
annotation	documentation The number of bins in x. This value overwrites the value specified in the definition file. Default is 1.

element HistogramDesc/HistXmin

diagram
annotation	documentation The minimum value in x. This value overwrites the value specified in the definition file. Default is 0.

element HistogramDesc/HistXmax

diagram
annotation	documentation The maximum value in x. This value overwrites the value specified in the definition file. Default is 1.

element HistogramDesc/HistYNbins

diagram
annotation	documentation The number of bins in y. This value overwrites the value specified in the definition file. Default is 1.

element HistogramDesc/HistYmin

diagram
annotation	documentation The minimum value in y. This value overwrites the value specified in the definition file. Default is 0.

element HistogramDesc/HistYmax

diagram
annotation	documentation The maximum value in y. This value overwrites the value specified in the definition file. Default is 1.

element HistogramDesc/HistZNbins

diagram
annotation	documentation The number of bins in z. This value overwrites the value specified in the definition file. Default is 1.

element HistogramDesc/HistZmin

diagram
annotation	documentation The minimum value in z. This value overwrites the value specified in the definition file. Default is 0.

element HistogramDesc/HistZmax

diagram
annotation	documentation The maximum value in z. This value overwrites the value specified in the definition file. Default is 1.

element HistogramDesc/HistAccumulate

diagram
annotation	documentation If this value is true the histograms content will be accumulated over all runs. Default is false.

complexType HistogramReadDesc

diagram
used by	element  ConfigurationDesc/HistogramRead
annotation	documentation Description of the histogram/graph reading.

element HistogramReadDesc/Read

diagram
annotation	documentation Read flag. (required)

element HistogramReadDesc/RunNumber

diagram
annotation	documentation Run number of the required histogram/graph file. (required)

complexType MacrosDesc

diagram
used by	element  ConfigurationDesc/Macros
annotation	documentation Description of macros.

element MacrosDesc/BeginOfRun

diagram
annotation	documentation Macro file name which is executed at the begin of run. It is executed after Tasks::BeginOfRun. (optional)

element MacrosDesc/BeginOfEvent

diagram
annotation	documentation Macro file name which is executed at the begin of event. It is executed before Tasks::Event. (optional)

element MacrosDesc/EndOfEvent

diagram
annotation	documentation Macro file name which is executed at the end of event. It is executed after Tasks::Event. (optional)

element MacrosDesc/EndOfRun

diagram
annotation	documentation Macro file name which is executed at the end of run. It is executed after Tasks::EndOfRun. (optional)

complexType ModesDesc

diagram
used by	element  ConfigurationDesc/Modes
annotation	documentation Description of the modes in which the framework can run.

element ModesDesc/AnalyzingMode

diagram
facets	enumeration  online enumeration  offline
annotation	documentation Describes the analyzing mode. This can be 'online' or 'offline'. Default is offline

element ModesDesc/DAQSystem

diagram
annotation	documentation Describes the DAQ system used for IO. This can be 'none', 'midas', 'root' or a user defined DAQ system. Default is none.

element ModesDesc/VerboseLevel

diagram
annotation	documentation Specify amount of messages from framework. mute, error, warning, normal or debug. default is normal.

element ModesDesc/ConfigCommentLevel

diagram
annotation	documentation Amount of comments in configuration xml file. 0 to 5. You have more comments when this is larger. degault is 1.

element ModesDesc/QuitMode

diagram
annotation	documentation If true, the program doesn't start a root session at the end. Default is false.

element ModesDesc/ShowSplashScreen

diagram
annotation	documentation Program shows a splash screen, when starting up. Default is true.

element ModesDesc/GraphicalConfigEdit

diagram
annotation	documentation Configuration file can be modified in a GUI at start up.

element ModesDesc/PreserveConfig

diagram
annotation	documentation Flag if configuration XML file is overwritten by program. When this is true, program does not overwrite configuration file.

complexType NetFolderDesc

diagram
used by	element  ConfigurationDesc/NetFolders/NetFolder
annotation	documentation Description of the NetFolder configuration.

element NetFolderDesc/NetFolderName

diagram
annotation	documentation The name of the NetFolder. (required)

element NetFolderDesc/Active

diagram
annotation	documentation Activate flag.

element NetFolderDesc/Reconnect

diagram
annotation	documentation If true, the framework tries to reconnect if the connection is lost. (optional)

element NetFolderDesc/Host

diagram
annotation	documentation The host of the NetFolder.

element NetFolderDesc/Port

diagram
annotation	documentation The port for the connection

element NetFolderDesc/Root

diagram
annotation	documentation The host's root folder.

complexType OnlineDesc

diagram
used by	element  ConfigurationDesc/Online
annotation	documentation Description of the online specific configuration.

element OnlineDesc/Host

diagram
annotation	documentation The name of the host of the online experiment. (required)

element OnlineDesc/Experiment

diagram
annotation	documentation The name of the online experiment. (required)

element OnlineDesc/AnalyzerName

diagram
annotation	documentation The name of the analyzer in the midas environment. Can be used to run two analyzer in parallel. (optional)

complexType PathsDesc

diagram
used by	element  ConfigurationDesc/Paths
annotation	documentation Description of the file paths the framework is using.

element PathsDesc/InputFilePath

diagram
annotation	documentation The path of all input files. (required)

element PathsDesc/OutputFilePath

diagram
annotation	documentation The path of all output files. (optional)

complexType ProgramConfigurationDesc

diagram
used by	element  Configuration/ProgramConfiguration
annotation	documentation Description of the program configuration.

element ProgramConfigurationDesc/ROME

diagram
annotation	documentation The ROME settings. (required)

element ProgramConfigurationDesc/ARGUS

diagram
annotation	documentation The ARGUS settings. (required)

complexType ROMEDesc

diagram
used by	element  ProgramConfigurationDesc/ROME
annotation	documentation Description of the ROME settings.

element ROMEDesc/Active

diagram
annotation	documentation If true, the progam will be an analyzer. Default is true.

complexType RunParametersDesc

diagram
used by	element  ConfigurationDesc/RunParameters
annotation	documentation Description of the run parameters.

element RunParametersDesc/RunNumbers

diagram
annotation	documentation The run numbers of runs, which have to be analyzed. The following syntax must be used : 1,3-5,7,9-12. All runs must be specified in the 'MainConfiguration' even if they are overriden by a 'RunConfiguration'. (required for offline)

element RunParametersDesc/EventNumbers

diagram
annotation	documentation The event numbers, which have to be analyzed. Use the same syntax as for the run numbers. (optional)

element RunParametersDesc/InputFileNames

diagram
annotation	documentation The input file names containing the runs, which have to be analyzed. If no input file is specified the DAQ systems will work with a run number based file IO. All files must be specified in the 'MainConfiguration' even if they are overriden by a 'RunConfiguration'. (optional)

complexType SocketInterfaceDesc

diagram
used by	element  ConfigurationDesc/SocketInterface

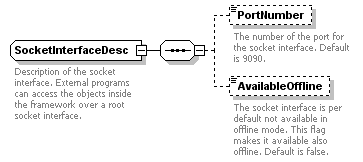

annotation	documentation Description of the socket interface. External programs can access the objects inside the framework over a root socket interface.

element SocketInterfaceDesc/PortNumber

diagram
annotation	documentation The number of the port for the socket interface. Default is 9090.

element SocketInterfaceDesc/AvailableOffline

diagram
annotation	documentation The socket interface is per default not available in offline mode. This flag makes it available also offline. Default is false.

complexType SocketToROMEDesc

diagram
used by	element  ArgusDesc/SocketToROME
annotation	documentation Description of the socket interface to the ROME analyzer. This section is needed if the ARGUS display should connect to a ROME analyzer of the current project..

element SocketToROMEDesc/Active

diagram
annotation	documentation Activate flag.

element SocketToROMEDesc/Host

diagram
annotation	documentation Host which runs the ROME analyzer.

element SocketToROMEDesc/Port

diagram
annotation	documentation Port number for the socket connection.

complexType SteeringParameterFieldArrayDesc

diagram
used by	element  SteeringParameterFieldDesc/SPFieldArray
annotation	documentation Description of an array value of the steering parameter field.

element SteeringParameterFieldArrayDesc/SPFieldArrayIndex

diagram
annotation	documentation The index of the value of a steering parameter field array. (required)

element SteeringParameterFieldArrayDesc/SPFieldArrayValue

diagram
annotation	documentation The value of the steering parameter field array. (required)

complexType SteeringParameterFieldDesc

diagram
used by	elements  SteeringParameterGroupArrayDesc/SteeringParameterField SteeringParameterGroupDesc/SteeringParameterField TaskDesc/SteeringParameterField TabDesc/SteeringParameterField ConfigurationDesc/GlobalSteeringParameters/SteeringParameterField
annotation	documentation Description of the steering parameter fields.

element SteeringParameterFieldDesc/SPName

diagram
annotation	documentation The name of the steering parameter field. (required)

element SteeringParameterFieldDesc/SPValue

diagram
annotation	documentation The value of the steering parameter field. (required for single values)

element SteeringParameterFieldDesc/SPFieldArray

diagram
annotation	documentation Describes an array value of the steering parameter field. (required for array values)

complexType SteeringParameterGroupArrayDesc

diagram
used by	element  SteeringParameterGroupDesc/SPGroupArray
annotation	documentation Description of an array group of the steering parameter group.

element SteeringParameterGroupArrayDesc/SPGroupArrayIndex

diagram
annotation	documentation The index of the group of a steering parameter group array. (required)

element SteeringParameterGroupArrayDesc/SteeringParameterField

diagram
annotation	documentation Describes a steering parameter field of the steering parameter group array. (required)

complexType SteeringParameterGroupDesc

diagram
used by	elements  SteeringParameterGroupDesc/SteeringParameterGroup TaskDesc/SteeringParameterGroup TabDesc/SteeringParameterGroup ConfigurationDesc/GlobalSteeringParameters/SteeringParameterGroup
annotation	documentation Description of the steering parameter groups.

element SteeringParameterGroupDesc/SPGroupName

diagram
annotation	documentation The name of the steering parameter group. (required)

element SteeringParameterGroupDesc/SPGroupArray

diagram
annotation	documentation Describes an array group of the steering parameter group. (required for array groups)

element SteeringParameterGroupDesc/SteeringParameterField

diagram
annotation	documentation Describes a steering parameter field. (optional)

element SteeringParameterGroupDesc/SteeringParameterGroup

diagram
annotation	documentation Describes a steering parameter group. (optional)

complexType TabDesc

diagram
used by	elements  TabDesc/Tab ConfigurationDesc/Tabs/Tab
annotation	documentation Description of the tab configuration.

element TabDesc/TabName

diagram
annotation	documentation The name of the tab.

element TabDesc/Active

diagram
annotation	documentation Inactive tasks are not executed by the framework.

element TabDesc/NumberOfPadsX

diagram
annotation	documentation The initial number of pads in horizontal direction. This tag is only used for tabs with display objects.

element TabDesc/NumberOfPadsY

diagram
annotation	documentation The initial number of pads in vertical direction. This tag is only used for tabs with display objects.

element TabDesc/PadConfiguration

diagram
annotation	documentation Tells the tab to activate the pad configuration. This tag is only used for tabs with display objects.

element TabDesc/SteeringParameterField

diagram
annotation	documentation Describes a steering parameter field of a task.

element TabDesc/SteeringParameterGroup

diagram
annotation	documentation Describes a steering parameter group of a task.

element TabDesc/Tab

diagram
annotation	documentation Describes a sub-tab.

element TabDesc/DisplayObject

diagram
annotation	documentation Describes a display object.

complexType TaskDesc

diagram
used by	elements  TaskDesc/Task ConfigurationDesc/Tasks/Task
annotation	documentation Description of the task configuration.

element TaskDesc/TaskName

diagram
annotation	documentation The name of the task. (required)

element TaskDesc/Active

diagram
annotation	documentation Inactive tasks are not executed by the framework. Default is true.

element TaskDesc/Histogram

diagram
annotation	documentation Describes a histogram configuration. (optional)

element TaskDesc/Graph

diagram
annotation	documentation Describes a graph configuration. (optional)

element TaskDesc/SteeringParameterField

diagram
annotation	documentation Describes a steering parameter field of a task. (optional)

element TaskDesc/SteeringParameterGroup

diagram
annotation	documentation Describes a steering parameter group of a task. (optional)

element TaskDesc/Task

diagram
annotation	documentation Describes a sub-task. (optional)

complexType TreeDesc

diagram
used by	element  ConfigurationDesc/Trees/Tree
annotation	documentation Description of the tree configuration.

element TreeDesc/TreeName

diagram
annotation	documentation The name of the tree. (required)

element TreeDesc/Read

diagram
annotation	documentation Trees can be read into the framework to start the analysis from a previously saved state. Default is false.

element TreeDesc/Write

diagram
annotation	documentation Trees are written to disc. Default is false.

element TreeDesc/Fill

diagram
annotation	documentation Trees are filled. It will be changed to true when 'Write' is true. Default is false.

element TreeDesc/CompressionLevel

diagram
annotation	documentation Compression level for all branches of the tree. Default is 0.

element TreeDesc/MaxNumberOfEntries

diagram
annotation	documentation If this value is greater than 0 the tree is a circular tree with the specified size. Default is 0.

element TreeDesc/TreeOutputFileName

diagram
annotation	documentation The name of the trees output file. This value overwrites the value specified in the definition file. (optional)

element TreeDesc/SaveConfiguration

diagram
annotation	documentation If this is true, content of configuration XML file would be saved in the output file. Default is false

element TreeDesc/Branch

diagram
annotation	documentation Describes a branch. (optional)

simpleType AnalyzingModeType

used by	element  ModesDesc/AnalyzingMode
facets	enumeration  online enumeration  offline

simpleType DAQSystemType

facets

enumeration  root enumeration  midas

simpleType DataBaseType

facets

enumeration  none enumeration  xml enumeration  sql enumeration  text

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
