The ELOG Home Page

Home of the Electronic Logbook package by Stefan Ritt

Current version is : 3.1.5

What is ELOG ?

ELOG is part of a family of applications known as weblogs . Their general purpose is :

to make it easy for people to put information online in a chronological fashion, in the form of short, time-stamped text messages ("entries") with optional HTML markup for presentation, and optional file attachments (images, archives, etc.)
to make it easy for other people to access this information through a Web interface, browse entries, search, download files, and optionally add, update, delete or comment on entries.

ELOG is a remarkable implementation of a weblog in at least two respects :

its simplicity of use : you don't need to be a seasoned server operator and/or an experimented database administrator to run ELOG ; one executable file (under Unix or Windows), a simple configuration text file, and it works. No Web server or relational database required. It is also easy to translate the interface to the appropriate language for your users.
its versatility : through its single configuration file, ELOG can be made to display an infinity of variants of the weblog concept. There are options for what to display, how to display it, what commands are available and to whom, access control, etc. Moreover, a single server can host several weblogs, and each weblog can be totally different from the rest.

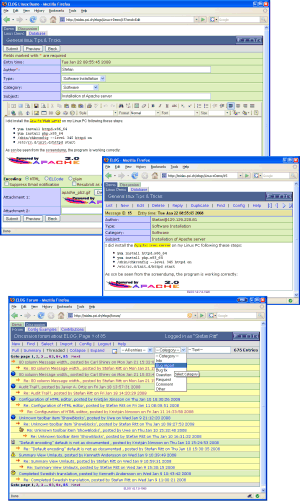

Screen shots

On the left upper panel is a typical logbook page displayed by Netscape Navigator. Each logbook page can contain attachments in a similar way to emails. This makes it possible to store images or text files and retrieve them easily. You could for example attach a sample configuration file which can later be copied to the local machine with the "Save As..." function of the Web browser.
Several logbooks can be served though a single ELOG server. Each logbook can use different attributes for its entries. The logbook can then be searched using these attributes. The right pane on the left image shows a search for all entries with attribute "Type" equal to "Configuration ", and the lower pane shows the search result. It is also possible to use full-text search in attributes and the entry body.
While logbook entries are usually displayed one entry per page, they can also be listed consecutively which makes it easy to produce a paper printout of a logbook.
Logbook pages can be edited or deleted. This feature can be turned off in the configuration file so that a logbook entries cannot be changed after being submitted.
An additional feature is the automatic generation of a notification email messages based on a certain type or category of a logbook entry.
Also try out the online demo !

Use cases

The features of ELOG make it useful for several applications:

Personal Logbooks. Personal notes can be written into ELOG and can then be retrieved from anywhere with a Web browser. This makes it handy for PC supporters who have to go around in companies or laboratories and don't want to carry their paper logbook with them. The same holds true for people traveling around a lot. The logbook database consists of plain ASCII files which can copied easily between different computers to have local access, for example on a notebook with no network connection.

Shared Logbooks. Logbooks can be shared by several people, for reading and optionally for writing. This way workgroups can share and exchange information like in a (simplified) news group. This is supported by the Reply command in ELOG which creates "threads" of entries. Users can be notified by email when new entries are added to the logbook. Compared to that of a news server, the installation of ELOG is much simpler.

Small Databases. Since arbitrary attributes can be defined for a logbook, it can be used as a small database with search facilities.

Problem collections. A system can consist of two logbooks, in one of which users enter bugs or problems. If someone adds a problem, an email is automatically sent to the administrator, who can then copy the entry to the second logbook and add the solution to the problem. Users can then look up all fixed problems.

Shift Logbooks. If the Allow delete and Allow edit flags are off, an entry cannot be modified once it's been entered. This can be useful for shift logbooks for example in accelerator control rooms where each entry becomes a "document" with a time and author stamp. ELOG was originally developed as a shift logbook for the PiBeta and Muegamma particle experiments at PSI.
File collections. Since files can be attached to ELOG entries, the system can be used to store and retrieve files. This can be used to store configuration files, which need to be accessible by several people over the web, or to store images. Since ELOG features an elaborate query facility, entries can be searched for by specifying several categories.

License

ELOG is released under the GNU Public License .

Credits

The author would like to give credits to following people:

Fred Pacquier for this Web site and the French translation
Recai Oktas and Roger Kalt for the Debian package
djek for the Dutch translation
Heiko Scheit for many bug fixes and fruitful discussions
Julio Calvo for the Spanish translation
Emiliano 'AlberT' Gabrielli
Andreas Luedeke

Talks and presentations

Here are some talks and presentations given at various occasions:

Seminar at KIT, Karlsruhe, Jan. 2015. Introduction talk by Stefan Ritt.
Seminar at KIT, Karlsruhe, Jan. 2015. Application of ELOG for accelerator operation at PSI by Andreas Luedeke.

Links

If your are reading this documentation from your local ELOG server, check for updates on the ELOG Home Page .
